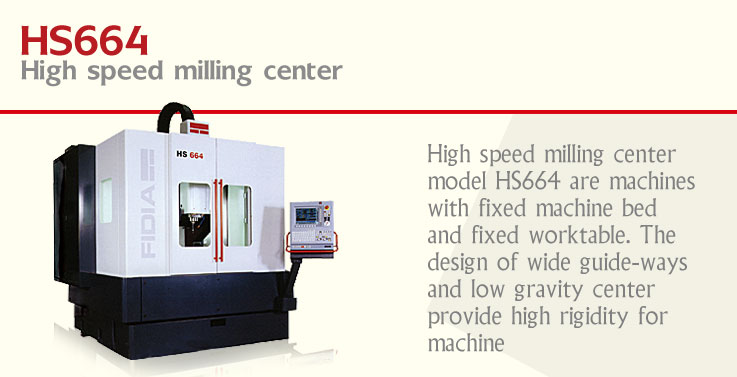

High speed
milling center model HS664 are machines with fixed
machine bed and fixed worktable. The design of wide
guide-ways and low gravity center provide high rigidity
for machine, suitable for high speed movement of linear
axis. Precision linear rollers and ball screws are used
for the movement of coordinates. With adoption of NC
driving technology, the speed of the machine can be
increased from 0 to 30m/min within 0.1 sec. The key
components of the machine such as motor spindle are
imported from Italy to meet high speed requirement of
4000rpm for spindle. Machine with three axes or four
axes are avaliable for selecting and adjusting on user's
demand, five axes fuction can be realized in the case
the rotary worktable is supplied. They have original
performance for machining work-pieces with material of
alloy aluminum, graphite, harden steel, super hard
alloy, copper electrode etc., suitable for machining
thin-wall work-pieces and moulds with nearly polishing
finishing surface.
|
